If your Leclerc loom is missing some of the basic components like Aprons, Lease sticks or Crank Handles, Camilla Valley Farm stocks a wide range of genuine Leclerc parts to get it back in working condition. If you are unsure of the piece(s) you are missing, just contact us and we will be glad to help you get what you need! Also note that we have many, many more parts in stock than we show on this page and we can also get custom components made. Just ask if you don't see it here!
Not Sure What Leclerc Loom You Have?
Check out our Leclerc Loom Guide to determine which model of Leclerc loom you have so you order the correct part.
Our online collection of Leclerc Loom Manuals provide assembly information and parts lists for most products!

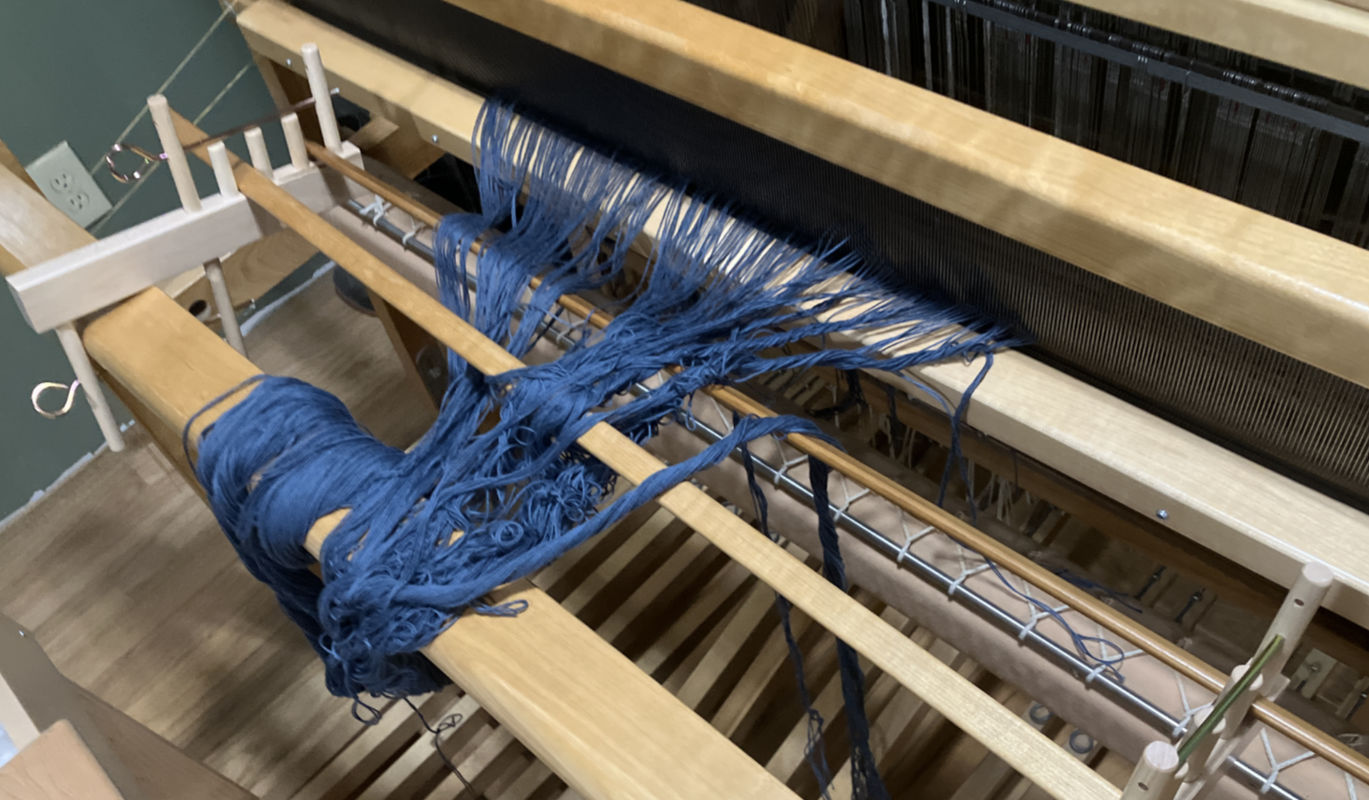

Available in either metal or wood, these Lease Sticks are used to hold the cross together when warping the loom. They have holes in the end to tie them together and/or to the loom frame for support while warping the loom. They can also be used with the Threading Helpers as shown in the picture below. Leclerc Looms are normally shipped with 2 Lease Sticks.
Leclerc weaving products are described in terms of the weaving width of the loom they are designed for so the actual physical width may be different.
NOTE THAT THE PRICE BELOW IS FOR A SINGLE LEASE STICK
IF 2 ARE REQUIRED, PLEASE INDICATE THIS ON THE ORDER FORM
| LEASE STICK LENGTH |
PRICE (per lease stick) | |
| Metal | Wood | |
| 15 3/4 inch (40 cm) |
2010-3919 $7.00 CDN $6.50 US |
2010-3929 $11.00 CDN $8.00 US |
| 22 inch (56 cm) |
- | 2020-3929 $11.00 CDN $10.00 US |
| 24 inch (60 cm) |
1022-3919 $9.00 CDN $8.00 US |
1022-3929 $17.00 CDN $15.00 US |
| 27 inch (70 cm) |
- | 3030-3919 $20.00 CDN $18.00 US |
| 36 inch (90 cm) |
- | 3040-3919 $20.00 CDN $18.00 US |
| 45 inch (115 cm) |
- | 3050-3919 $22.00 CDN $20.00 US |
| 60 inch (150 cm) |
- | 3060-3919 $31.00 CDN $28.00 US |
| 100 inch (250 cm) |
1003-3919 $30.00 CDN $28.00 US |
3100-3919 $105.00 CDN $94.00 US |
These round steel rods are used to tie the warp threads to the canvas apron on the warp and cloth beam or to beam sticks. The same bar is used to attach warp threads to the sectional warping beam if the loom is so equipped. The standard warp rods shipping with looms for years have a 5/16" diameter. For weaving very narrow projects that can put pressure on a small area of the warp rod, a heavy duty version with a diameter of 7/16" is also available in some lengths. Normally 4 warp rods are needed for each loom (2 on the cloth beam and 2 on the warp beam) and they are tied together using lashing cord.
Leclerc weaving products are described in terms of the weaving width of the loom they are designed for so the actual physical width may be different.
NOTE THAT THE PRICE BELOW IS FOR A SINGLE WARP ROD
INDICATE THE NUMBER REQUIRED ON THE ORDER FORM
| DESCRIPTION | PN#/PRICE (each) | |
| Standard (5/16") | Heavy Duty (7/16") | |
| 15 3/4 inch (40 cm) |
2010-4349 $9.00 CDN $8.00 US |
- |
| 22 inch (56 cm) |
2020-4349 $9.00 CDN $8.00 US |
- |
| 24 inch (60 cm) |
1022-4349 $10.00 CDN $9.00 US |
- |
| 27 inch (70 cm) |
3030-4349 $10.00 CDN $9.00 US |
- |
| 36 inch (90 cm) |
3040-4349 $14.00 CDN $13.00 US |
3040-4350 $21.00 CDN $19.00 US |
| 45 inch (115 cm) |
3050-4349 $18.00 CDN $16.00 US |
3050-4350 $22.00 CDN $20.00 US |
| 60 inch (150 cm) |
3060-4349 $21.00 CDN $19.00 US |
3060-4350 $27.00 CDN $25.00 US |
| 100 inch (250 cm) |
1003-4349 $29.00 CDN $26.00 US |
- |
These metal or wooden rods are used instead of canvas aprons to attach the warp threads to the warp and cloth beams. They have a series of holes which are used to tie it to the warp/cloth beam using a lashing cord. Normally 2 are shipped with each loom except the Artisat which uses a Beam Stick on the Warp Beam and an Apron on the Cloth Beam.
Leclerc weaving products are described in terms of the weaving width of the loom they are designed for so the actual physical width may be different.
| ITEM # | LENGTH | LOOM USED WITH | MATERIAL | PRICE (each) |
| 2010-3920 | 15 3/4 inch (40 cm) |
Dorothy (15 3/4") | Wood | $17.00 CDN $15.00 US |
| 2410-3920 | 24 inch (60 cm) |
Dorothy (24"), Penelope & Bergere | Metal | $15.00 CDN $13.50 US |
| 1022-3920 | 24 inch (60 cm) |
Compact | Metal | $15.00 CDN $13.50 US |
| 3040-3920 | 36 inch (90 cm) |
Artisat (36") | Metal | $18.00 CDN $16.00 US |

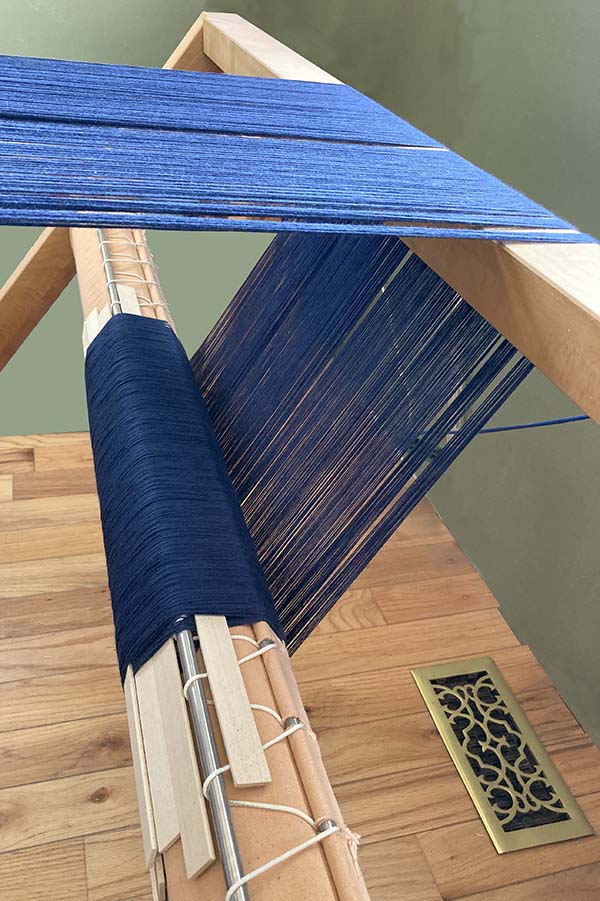

These wooden warp sticks are useful when beaming a long warp. They are placed on the warp beam to separate layers of warp yarn as it is wound on the beam to maintain perfect tension and to prevent edge threads from slipping down. Two (2) warp sticks are used per turn of the warp beam and each warp stick is 3/4 inch (19 mm wide and about 1/8 inch (2 mm) thick. These warp sticks are sold in packs of one dozen (12).
Leclerc weaving products are described in terms of the weaving width of the loom they are designed for so the actual physical width may be different.
| ITEM # | DESCRIPTION | PRICE (for 12) |
| 6240-1000 | 15 3/4 inch (40 cm) | $30.00 CDN $27.00 US |
| 6240-2000 | 24 inch (60 cm) for Dorothy/Voyageur | $31.00 CDN $28.00 US |
| 6241-2000 | 24 inch (60 cm) for Compact | $31.00 CDN $28.00 US |
| 6240-3000 | 27 inch (70 cm) | $32.00 CDN $29.00 US |
| 6240-4000 | 36 inch (90 cm) | $37.00 CDN $34.00 US |
| 6240-5000 | 45 inch (115 cm) | $40.00 CDN $36.00 US |
| 6240-6000 | 60 inch (150 cm) | $42.00 CDN $38.00 US |

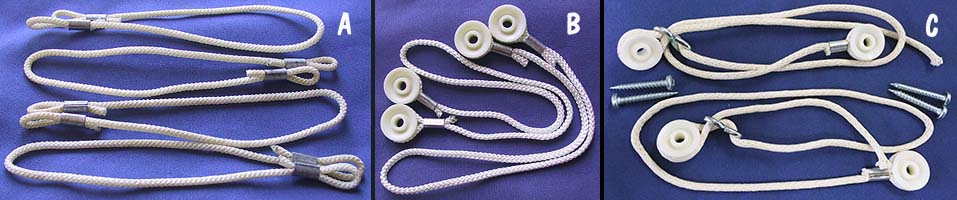

These cords are used on the Mira and Fanny counterbalance loom families (including the older F and M series looms). The upper set of cords (A, B and C) connect the two lower rollers together and wraps around the upper roller. The lower cord set connect the lower rollers to the Shaft Frame Hooks on the shafts. The cords are made of a durable braided nylon or cotton for durability.
Replacing the upper cords will require the removal of a screw holding the old pulleys (or hooks on older looms) with a square bit screwdriver that is normally found with the loom. If missing, this screwdriver set is available which can also be used to remove or tighten other parts of the loom.
There are 3 sets of upper roller cords that are designed to fit looms configured with the 3 primary ways the upper roller was attached to the frame (all three are shown below). The current "C" shaped (A) and the older "L" shaped (B) brackets allow the height of the shafts to be adjusted by moving the upper roller up and down. On the older looms with the fixed height roller (C), the cord length is adjustable. On these looms, the upper cords also replace the hooks on the end of the lower roller with the improved nylon pulley system.
Counterbalance Loom Improvements provides more information on the changes to this part of the loom. Our Counterbalance Configuration Guide explains how to adjust the mechanism.
Note: The older fixed upper roller systems (C) can be converted to the newer improved "C" bracket system (A) with these parts. Note that the upper roller has to be shortened slightly by cutting a small piece off of each end. All three systems can also be converted by adding a Shed Regulator like the Mira II and Fanny II to allow better handling of unbalanced weaves.
| ITEM # | SHOWN AS | DESCRIPTION | PRICE (each) |
| 88800-0080 | A | Upper Cord Set (2 cords with pulley rollers) |
$10.00 CDN $9.50 US |
| 88800-0086 | B | Long Upper Cord Set (2 cords with pulley rollers) |
$10.00 CDN $9.50 US |
| 88800-0082 | C | Adjustable Upper Cord Set for older looms (2 cords) See note above |
$15.00 CDN $14.00 US |
| 88800-0081 | D | Lower Cord Set (4 cords) |
$12.00 CDN $11.00 US |

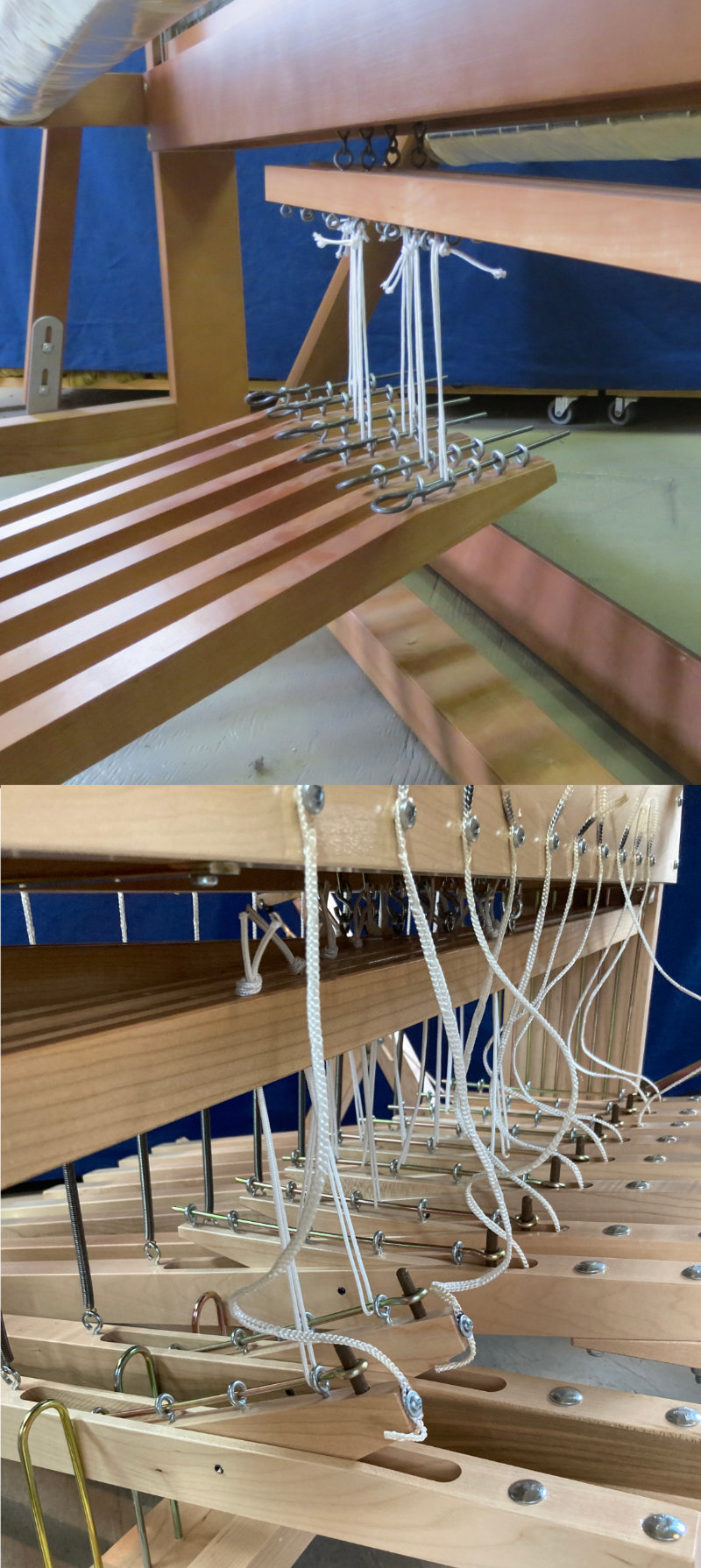

Treadle cords connecrt the Treadles to the Lams so that when a treadle is depressed all the lams attached to it are pulled down either raising (Jack) or lowering (Counterbalance) the shafts above. Treadle Cords have improved the old awkward system where a simple cord was tied between the lam and treadle and the weaver had to try to make the cords the same length. The Treadle Cords and Treadle Hooks allow the Tie-up to be quickly changed avoiding mistakes and making it easy and fast to adjust. Leclerc described this improved system over half a century ago in their 1969 catalog.
These nylon Treadle Cords are designed not to stretch over time and have all been cut to the standard length required for each different loom model. On older loom models that used simple cords, the screw eyes on the treadles can simply be rotated 90 degrees so the Treadle Hooks can be used.
The chart below shows the treadle cord lengths currently included or recommended for each loom model and type. It is important that all cords used on a loom are the same length and it should be noted that the recomendations below may be different to cords shipped with older looms.
| ITEM # | DESCRIPTION | LOOM USED WITH | PRICE (set) |
| 88800-0090 | 6" Treadle Cords (set of 12) |
- | $13.00 CDN $12.00 US |
| 88800-0091 | 6 1/2" Treadle Cords (set of 12) |
Artisat (Back-Hinge Treadle version) & Nilus (Back-Hinge Treadle version) |
$13.00 CDN $12.00 US |
| 88800-0092 | 7" Treadle Cords (set of 12) |
Artisat, Mira, Fanny, Nilus, Colonial/Colonial I, Kebec & Nilart |
$13.00 CDN $12.00 US |
| 88800-0089 | 8 1/2" Treadle Cords (set of 12) |
Nilus II (Back-Hinge Treadle version) & Colonial (Back-Hinge Treadle version) |
$13.00 CDN $12.00 US |
| 88800-0093 | 9" Treadle Cords (set of 12) |
Nilus II, Minerva & Kebec II | $13.00 CDN $12.00 US |
| 88800-0093c | 9" Compact Treadle Cords (set of 12) |
Compact | $13.00 CDN $12.50 US |
| 88800-0087 | 12" Treadle Cords (set of 12) |
New Table Loom Treadle Stand | $15.00 CDN $14.00 US |
| 88800-0088 | 14" Treadle Cords (set of 12) |
Old Table Loom Treadle Stand | $16.00 CDN $14.50 US |
This nylon braided cord is strong and durable and does not stretch when tension is applied. It is wonderful for many weaving applications. It is supplied with Leclerc Bergere and Penelope II looms to lash the warp rods to the warp and cloth beams as well as the Leclerc floor looms to lash to the approns. The cord comes in 5 yard (4.5m) or 16 yard lengths (14.0m) and is approximetly 1/8" in diameter.
On new 36 and 45 inch looms, Leclerc recommends that the 5 yard cord be cut in half with one half being used to lash (or lace) the warp beam and the other to be used on the cloth beam. On a 60 inch loom they recommend using a full 5 yard cord on both beams.
| ITEM # | DESCRIPTION | PRICE (each) |
| 88800-0110 | Nylon Cord (5 yards) | $5.00 CDN $4.25 US |
| 88800-0111 | Nylon Cord (16 yards) | $12.00 CDN $11.00 US |
Texsolv Loop (or Chain) Cord consists of two parallel nylon ropes that are locked together at regular intervals forming a continuous series of regular loops. This "crocheted" polyester cord is extremely durable and knotless and can be quickly and securely fastened together in a number of different ways as shown to the left.
Leclerc uses Loop Cord in a number of different applications including lashing for the Dorothy and Voyageur table looms, for treadle tie-ups on some of the floor looms and for supporting the Back-hinge treadles on looms equipped with these. There are also two types of Nylon Anchor pegs which can be used in conjunction with the cord for fast connection and adjustment.
The loop cord is available by the yard in either a large or small size. The large size is thicker and has loops every 3/4 inch while the loops are every 1/2 inch in the small cord. The pegs are approx. 1 inch in length and are shown below.
Pricing for the Texsolv loop cord is either by the yard or in either a 55 yard section wound on a Spool or 218 and 273 yard sections in a handy dispenser box.
| ITEM # | DESCRIPTION | AMOUNT | PRICE |
| 88800-0120 | Large Loop Cord (top of picture) |
price per yard | $1.90 CDN $1.75 US |
| 88800-0124 | 218 Yard (200 m) Box | $354.95 CDN $323.95 US |
|
| 88800-0121 | Small Loop Cord (bottom of picture) |
price per yard | $1.90 CDN $1.75 US |
| 88800-0122 | 55 yard (50 m) Spool | $76.95 CDN $69.95 US |
|
| 88800-0123 | 273 yard (250 m) Box | $375.95 CDN $339.95 US |
|
| 88800-0125 | Straight Peg (left) | price each | $0.40 CDN $0.35 US |
| 88800-0126 | Anchor Peg (right) | price each | $0.50 CDN $0.45 US |
Many early Leclerc looms connected the brake mechanism at the back to the front brake lever using a brake cord. Pushing on the lever pulled on the cord which loosened the brake coil allowing the warp beam to turn. See the picture below and the ones at the Floor Loom Brake Parts section.
This Leclerc Brake cable is made using a thick woven cord for strength and durability. It has a loop at one end to connect to the brake mechanism and the other end is tied to the wooden brake lever at front. The cord is 2 yards (72 inches) long to allow it to be used for any loom configuration including the brake on the Double Warp Beam which sometimes has to take an indirect route.
| ITEM # | DESCRIPTION | PRICE |
| 88800-0190 | Brake Cord | $7.00 CDN $6.50 US |
These rubber pads (shown below left) are designed to dampen the impact of the beater bar on the floor loom castle and avoid damage to the wood frame and beater. Depending upon the loom, either a single pad is used on the beater on each side, or pads are attached to both the beater and the frame.
The bumper pads are normally pin-nailed to the loom frame but can also be fastened between the ribs with small finishing nails or screws (2 screws are provided with each Standard Bumper Pad). Another option is gluing them, but the ribs on one side don't make the best surface for this. The modified bumpers have the back ribs removed for easier glueing (no screws included).
The shorter pads above are used for most Leclerc floor looms but there are longer rubber pads, designed for the Artisat loom. In the early Artisat models Leclerc used the standard shorter Beater Bumpers but later changed to these longer versions to ensure the loom castle was protected both when the loom was in use and when it was folded up for storage. These have flat backs to allow them to be glued on to the castle but can also be nailed or attached with screws (no screws included).
| ITEM # | DESCRIPTION | SHOWN AS | PRICE (each) |
| 88800-0100 | Standard Beater Bumper Pad | A | $3.50 CDN $2.95 US |
| 88800-0101 | Modified Beater Bumper Pad | B | $4.95 CDN $4.50 US |
| 88800-0109 | Artisat Beater Bumper Pad (long) |
C | $12.00 CDN $10.50 US |
These rubber pads are attached to the front of the castle on Leclerc table looms like the Dorothy, Voyageur and other older table loom models to protect the wood from damage from contact with the beater. They are self-adhesive and come in a set of two.
| ITEM # | DESCRIPTION | PRICE |
| 88800-0103 | Table Loom Beater Bumper (set of 2) | $3.25 CDN $2.95 US |
These non-skid polyvinyl pads are mounted to the base of all the wooden parts on Leclerc floor looms and Weaving Acessories that come in contact with the floor. They are designed to stop them from moving as the weaver beats or the Tool is being used and to protect the floor and loom from scratches. They are made from a very durable polyvinyl material and are about 5/16 inch thick with a ridged base. These can be stapled, glued, screwed or nailed in place. The number and size required varies with the specific loom design or Tool it is being installed on.
Note that if these pads are being used to replace some of the original black rubber pads and the others black pads on the loom have worn down over time, it is recommended that the pad on both the left and right side be replaced to avoid having the loom rock side to side.
| ITEM # | SHOWN AS | DESCRIPTION | SIZE: | USED FOR: | PRICE (each) |
| 88800-0105 | A | Large Base Pads (each) | 2 1/4" x 1 1/2" | Base of Most Floor Looms | $5.00 CDN $4.00 US |
| 88800-0104 | B | Medium Base Pads (each) | 1 5/8" x 1 3/8" | Base of Artisat, Spool Rack, Cendrel Loom, Tension Box, Table Warping Mill, etc. |
$4.50 CDN $4.00 US |
| 88800-0102 | C | Narrow Base Pads (each) | 2 1/4" x 3/4" | Base of Compact Loom | $4.00 CDN $3.50 US |
These non-skid polyvinyl pads attach to the base of Leclerc Table Looms like the Dorothy, Voyageur, Meco, Medico, Nilec and Jano. Like the larger floor loom pads they are designed to stop the loom from moving as the weaver beats and to protect the table and loom from scratches. They are made from a very durable polyvinyl material and are aproximately 7/8 by 5/8 inches in size and 3/8 inch thick with a ridged base. These can be glued, pin-nailed or screwed in place . The number required per loom varies with the specific loom design.
These pads are also used with some smaller items like the Cone Holder.
| ITEM # | DESCRIPTION | PRICE (each) |
| 88800-0106 | Table Loom Non-Skid Base Pads (each) | $2.00 CDN $1.75 US |
These nylon pads are installed on the Artisat, Nilus and Nilus II jack looms on the top of the jack box. The are designed to cushion the impact of the shafts as they drop back in place. Two are required for each loom and they are pin-nailed or screwed to the jack box.
There are two styles of these and two different sizes of each. Older style Leclerc Jack looms had the bumpers installed on either side up against the castle sides (A) while the newer style (B) have a cutout at each end and are mounted close to the center of the jack box. The older style were usually a softer black rubber as pictured to the left. A different size of each style is available for 4 shaft and 8 shaft looms.
Note that these bumpers are available in different lengths for other Leclerc looms with more shafts. Contact for pricing and more information.
| ITEM # | STYLE: | DESCRIPTION | PRICE (each) |
| A | 88800-0147 | Side Shaft Frame Bumper - 4 Shaft (each) | $10.00 CDN $9.00 US |
| 88800-0148 | Side Shaft Frame Bumper - 8 Shaft (each) | $12.00 CDN $11.00 US |
|
| B | 88800-0107 | Center Shaft Frame Bumper - 4 Shaft (each) | $10.00 CDN $9.00 US |
| 88800-0108 | Center Shaft Frame Bumper - 8 Shaft (each) | $12.00 CDN $11.00 US |

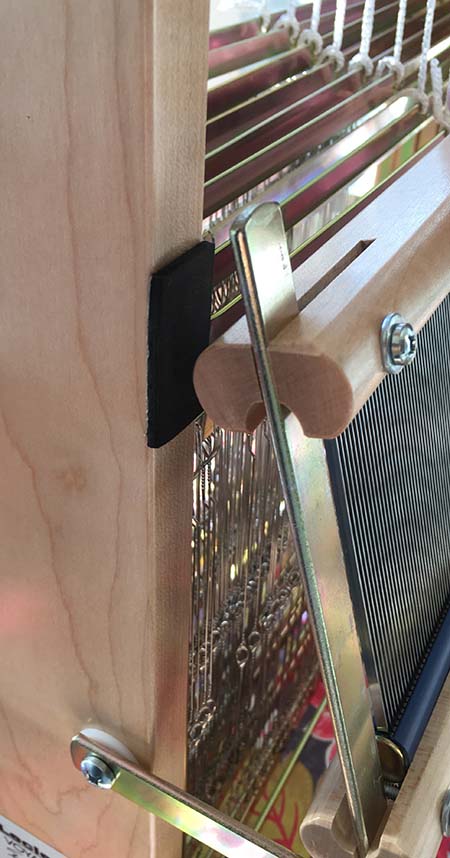

These handy clips are used to attach the Leclerc Raddle to the front or back Breast Beam on Leclerc floor looms during the warping process. Made of metal, these clips are normally included with the Raddles but are often go missing. The price below is for a set of 2 clips and small and large versions are available to fit the different loom models.
| ITEM # | DESCRIPTION | LOOM MODELS | PRICE (pair) |
| 88800-0140 | Small Raddle Clips (pair) | Artisat, Compact and Minerva | $10.00 CDN $9.00 US |
| 88800-0138 | Large Raddle Clips (pair) | Mira, Fanny, Nilus, Nilus II, Colonial and Weavebird | $10.00 CDN $9.00 US |
These parts are used on either side of the loom to mount the upper roller on Leclerc Mira and Fanny Counterbalance looms. The Upper Roller Support has Nylon Inserts and two wingnuts that can be adjusted along the threaded shaft to raise and lower the upper roller and then lock it in place. This mechanism allows the weaver to control the height of the shafts to position the warp threads relative to the reed. The "U" shaped brackets mount to the loom frame and include 2 screws. To convert older Leclerc Counterbalance looms to this system, two of each part are required. Note that the existing upper roller may have to be shortened slightly on each end to fit the new mechanism.
If the Upper Roller is the very old fixed thickness (rather than having the two larger diameter sections shown) replacing the Upper Roller and using the mounting brackets will improve the loom performance. Counterbalance Loom Improvements provides more information on the changes to this part of the loom. Our Counterbalance Configuration Guide explains how to adjust the mechanism.
These parts are not needed if the older loom is converted with the Shed Regulator Option used on the current Mira II and Fanny II models.
| ITEM # | DESCRIPTION | SHOWN AS | PRICE (each) |
| 88800-0062 | Upper Roller Support (threaded rod with wingnuts) |
A | $26.00 CDN $24.00 US |
| 88800-0061 | Upper Roller Support Mounting Bracket (includes screws) |
B | $26.00 CDN $24.00 US |
These heavy metal brackets are used to repair broken brackets on Leclerc Sectional Beam rakes or convert a rake beam with 2 inch spacing to 1 inch spacing. They brackets are tapped into place using a hammer and a block of wood.
| ITEM # | DESCRIPTION | PRICE (each) |
| 88800-0063 | Sectional Beam Brackets (each) | $1.95 CDN $1.75 US |

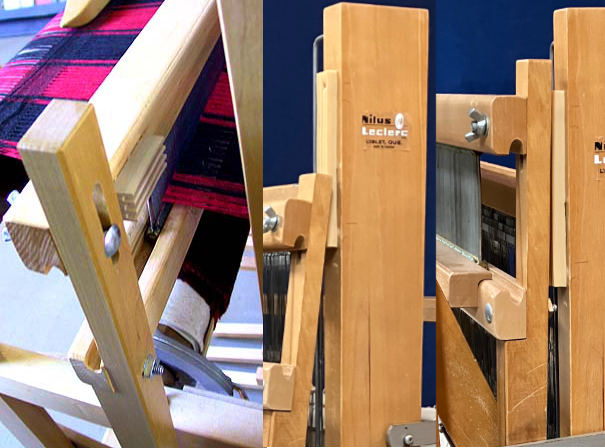

These bolts are used to fasten the frame parts together for the Fanny, Mira and other Leclerc looms. Each bolt includes a washer and the special square nut that grips to the edges of the hole in the frame to allow the head of the bolt to be easily tightened with just a 9/16" wrench without turning the loom upside down or lifting it to put a wrench on the nut.
There are 12 bolts on the standard Mira and Fanny loom (6 on each side) and the distance between the outside of the frame and the edge of the hole where the nut is installed should be about 4 to 4 1/4 inches. The bolt locations on a single side of each loom (Mira left, Fanny right) are shown in the picture below (Click to enlarge). On the 4 shaft Nilus and Nilus II Jack looms, 4 of the Long Bolts are used to attach the lateral cross-members to the castle.
Note that these bolts are all for these specific 4 shaft loom models. If the loom has more shafts (or room for more), or is a different model ,contact us as some of the bolts will be different.
| ITEM # | DESCRIPTION | PRICE (each) |
| 88800-0280 | Mira/Fanny Frame Bolt Set (12 x Bolt/Washer/Nuts) |
$44.95 CDN $40.00 US |
| 88800-0246 | Nilus/Nilus II Frame Bolt Set (12 x Bolt/Washer/Nuts) |
$48.95 CDN $44.00 US |
| 88800-0281 | Single Bolt (1 x Bolt/Washer/Nut) |
$5.50 CDN $4.95 US |
| 88800-0247 | Single Long Bolt (1 x Bolt/Washer/Nut) |
$6.50 CDN $5.95 US |

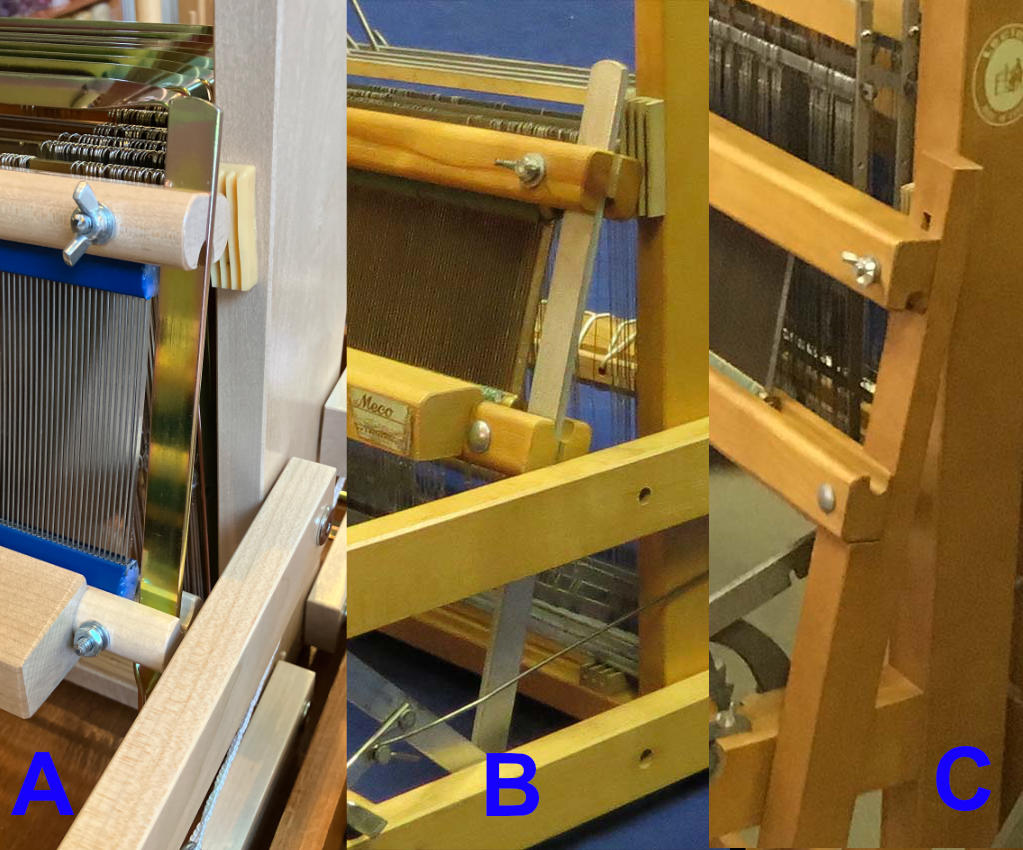

These bolts are used to fasten the horizontal Batten Handtree and Batten Sley to the vertical Swords on each side of the loom beater. There are a total of 4 bolts. The 2 lower bolts have square nuts and are always kept tight to position the beater frame. The 2 upper bolts have wing nuts that face the weaver and are loosened to raise the Batten Handtree so the Reed can be removed and installed.
The smaller bolts are used on the Meco and Medico table looms (pictured left) as well as the Minerva floor loom (with metal swords). Contact us if you need bolts for the newer Minerva model with wooden swords.
The larger bolts are used on the Artisat, Mira, Fanny, Nilus, Nilus II, Colonial and most other Leclerc Floor looms.
| ITEM # | LABEL | DESCRIPTION | PRICE (each) |
| 88800-0282 | A | Meco/Medico/Minerva Beater Bolt Set (4 x Bolts/Washers/Nuts) |
$13.50 CDN $11.95 US |
| 88800-0283 | B | Floor Loom Beater Bolt Set (4 x Bolts/Washers/Nuts) |
$15.75 CDN $13.95 US |

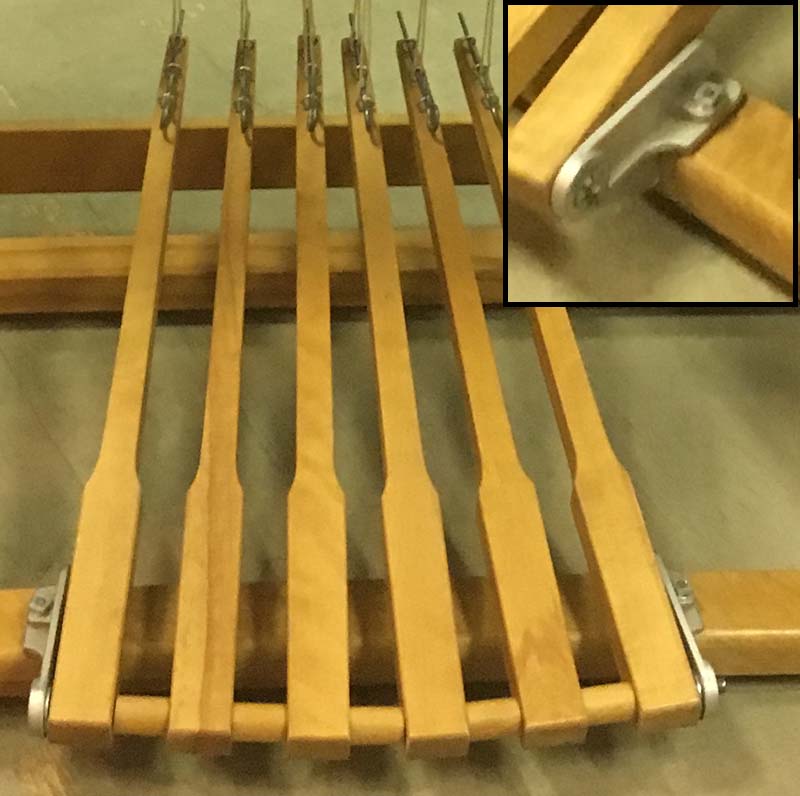

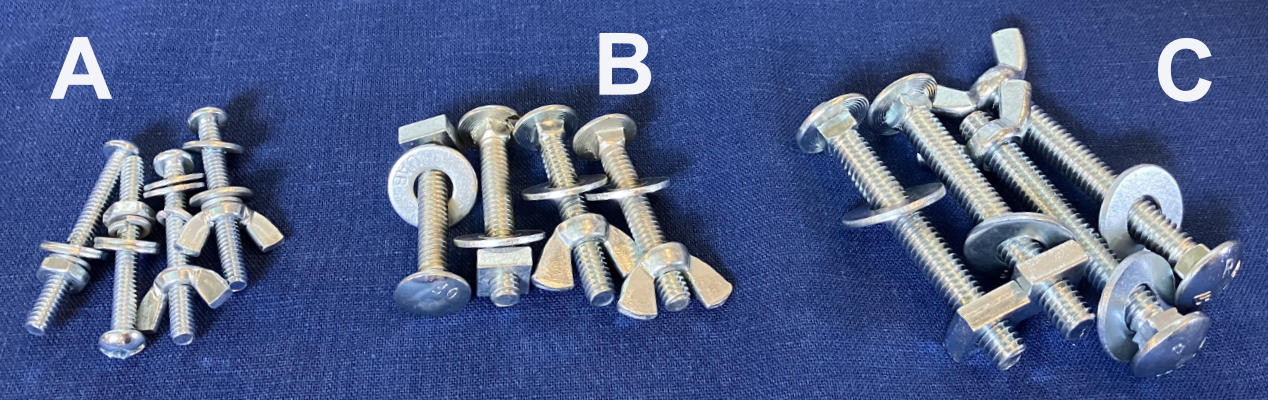

These bolts are used to fasten the metal brackets of the treadle set to the lower frame beam of most Leclerc floor looms like the 4 shaft Mira, Fanny and the 4 shaft Nilus. A set of 2 bolts is provided, each with a square nut. Note that these only work for the curved set of 6 treadles with the metal mounting brackets.
Different bolts are required for the wooden mounting brackets used in the 8 shaft Nilus and all Nilus II models. Either 2 or 3 bolts with a wingnut and washer are required. These are sold individually.
Contact us for pricing on the bolts for other models.
| ITEM # | DESCRIPTION | PRICE |
| 88800-0284 | Treadle Set Mounting Bolts - Metal Bracket (2 x Bolts/Nuts) |
$5.50 CDN $4.95 US |
| 88800-0224 | Treadle Set Mounting Bolt - Wood Bracket (1 x Bolt/Washer Wingnut) |
$3.50 CDN $3.00 US |
These wooden pegs are used to hold the frame together on the original Colonial loom. They are normally tapped in place with a rubber hammer and hold the frame securely even when the loom is being beaten heavily. Note that these pegs are not used in the other versions of the Colonial like the Colonial I and the Colonial v2 which use bolts to hold the frame together.
These pegs are made from Maple Hardwood and 8 pegs are used on the Colonial loom. (Click to enlarge).
| ITEM # | DESCRIPTION | PRICE (each) |
| 88800-0245 | Colonial Frame Peg | $7.00 CDN $6.00 US |

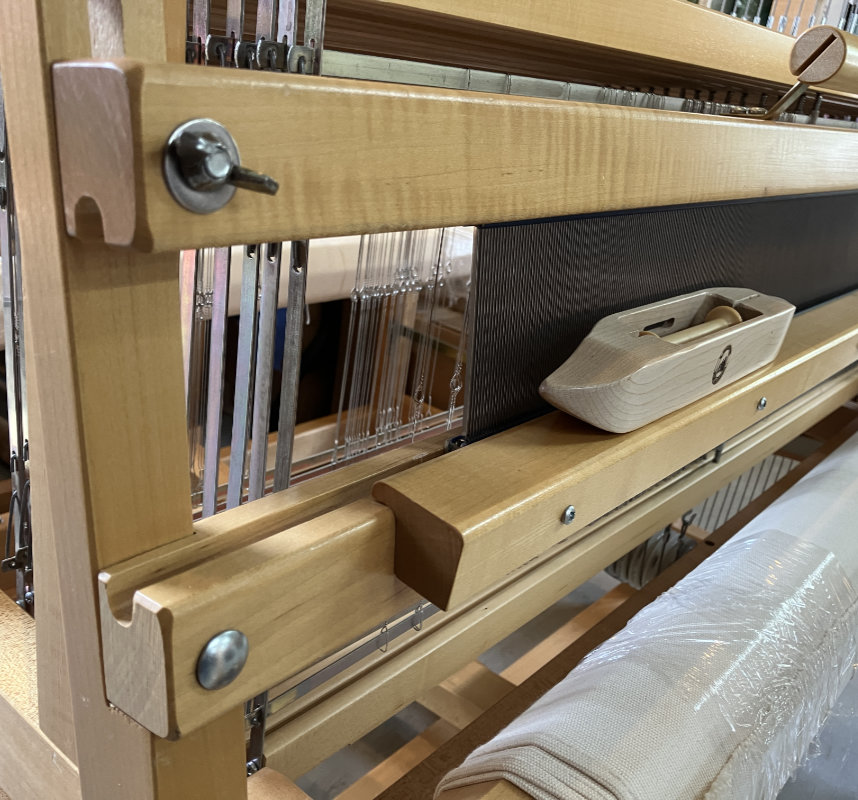

These metal plates are used to attach the wooden beater swords to the loom frame on floor looms like the Fanny, Mira, Nilus, Nilus II, Colonial and Weavebird. They allow the beater height to be adjusted by about 1 inch to make sure the beater is positioned properly in relation to the warp threads which is different for Jack and Counterbalance/Countermarch looms. While originally designed to allow the same wooden beater swords to be used on bioth Jack and Counterbalance looms, some weavers like the ability to "fine tune" the position of the beater to get the optimum shed.
By loosening the pair of nuts on each side, the wooden sword can be moved up or down. The kit includes 2 of the mounting screws as well as the bolts/nuts used to fasten the plate to the wooden sword. The screws to attach the mounting plates to the loom frame are also available separately.
A set of lag screws to attach the plates to the frame are also included but in newer looms a set of bolts/nuts bolts may be required. Contact us if these are required.
Note that older Leclerc looms had beater mechanisms that did not have this adjustment plate but they can be upgraded by cutting off the end of the swords and drilling a set of holes to attach the plate and using the shorter lag screw included. See the picture shown here for measurements.
Some older Leclerc floor looms used a slightly different version of this plate. The picture located here includes measurements to determine if the plate will work with these looms.
| ITEM # | DESCRIPTION | PRICE |
| 88800-0068 | Beater Sword Mounting Plate Set | $48.00 CDN $44.00 US |
| 88800-0069 | Beater Sword Mounting Screw/Washer Set (2 Screws and 4 Washers) |
$5.00 CDN $4.50 US |
On most Leclerc floor looms like the Fanny, Mira, Nilus and Nilus II the treadle set is mounted using two brackets which attach to the frame. The metal treadle rod is attached to the bracket on one side, but just fits through a hole in the other side to allow the treadle parts to be removed. To keep the rod from coming out of the bracket, a flat metal lock nut is inserted on the outside end of the treadle rod and pushed in until it is up against the bracket. This lock nut is designed to move only one way and can not normally be removed without destroying it. To re-install the wooden treadles and spacers after taking the treadle set apart, another flat lock nut is usually required. The part numbers below are for a single Treadle Lock Nut.
The standard lock nut fits most looms including the Artisat, Minerva and Table loom Treadle Stands. A special smaller Lock Nut is used on the Compact and 4 are required as they are used to secure the Brake Treadle as well as the shaft treadles. Specify the specific loom with the order note section to ensure you get the correct size.
Note: The old lock nut can normally be removed by prying the space between the nut and the bracket using a large screwdriver or cutting one side of the nut with a pair of pliers.
| ITEM # | DESCRIPTION | PRICE (EACH) |
| 88800-0197 | Treadle Set Lock Nut | $1.75 CDN $1.50 US |
| 88800-0198 | Compact Treadle Set Lock Nut | $1.75 CDN $1.50 US |
These metal pins are used on most Leclerc Floor looms to attach the front and back breast beams. They come in pairs and fit most of the looms with removable breast beams like the Fanny, Mira, Nilus, Nilus II, Nilart, Colonial and Weavebird.
They also fit the brackets for the older model of the Double Warp Beam that used a standard breast beam instead of the current roller design. Normally a total of 2 pairs (4 pins) are used on each loom.
| ITEM # | DESCRIPTION | PRICE (pair) |
| 88800-0268 | Pair of Breast Beam Pins (2 Pins) | $5.95 CDN $4.95 US |
These screws are used to fasten the Artisat front and back Breast Beams to the frame. They come in sets of 4 screws (2 screws for the front Breast Beam and 2 screws for the back).
On most newer looms, Leclerc used 2 inch long screws (length of screw shaft excluding screw head) but on some older looms slightly longer 2 1/2 inch screws were used. The longer ones can be used on any Artisat model although the hole depth in the frame may have to be drilled a little deeper if 2 inch screws were originally used. The longer screws may also help in tightening up the Breast Beam if the existing hole has become worn over time.
Note: Parts may require the special square end screwdriver to remove the old and/or install the new part. Please ensure you have these tools before ordering to avoid installation problems.
| ITEM # | DESCRIPTION | PRICE (4 Screws) |
| 88800-0875 | Artisat Breast Beam Screws 2 inch (4 Screws) |
$7.95 CDN $6.95 US |
| 88800-0876 | Artisat Breast Beam Screws 2 1/2 inch (4 Screws) |
$7.95 CDN $6.95 US |
The parts are used to construct and attach the Treadle sets for the Fanny, Mira, Nilus (front hinge) and Nilus II (front hinge) floor looms. These parts may also be used on some older versions of the Table Loom Treadle Stands.
The Fanny, Mira, Nilus (4 Shaft Front-Hinge) looms use a treadle set made using 1 x Left Metal Bracket with an attached curved treadle rod (C), 1 x Right Metal Bracket (D), 6 x Treadles (A), 5 x Spacers (B) and 2 x Metal Washers (J). The Full Treadle Set for these looms can be ordered using Part Number 88800-0271 below. The Mounting Bolts (E) are used to attach them to the Loom Frame. This treadle set is shown at the top of the pictures
The Treadle Set for the 4 shaft Front Hinge versions of the Nilus II is constructed with 6 x Treadles (F), 4 x Spacers (B), 4 x Washers (J), 1 x Treadle Rod (G) and 3 x Mounting Brackets (H). This Treadle Set is shown at the bottom of the pictures.
| ITEM # | SHOWN AS | DESCRIPTION | LOOM | PRICE (each) |
| 88800-0258 | A | Single Wooden Treadle | Fanny, Mira and Nilus (front hinge) | $69.95 CDN $62.95 US |
| 88800-0255 | B | Wooden Treadle Spacer | Fanny, Mira, Nilus (front hinge) and Nilus II (front hinge) |
$4.25 CDN $3.75 US |
| 88800-0278 | C | Left Treadle Mounting Bracket with Treadle Rod and Lock Nut |
Fanny, Mira and Nilus (front hinge) | $49.95 CDN $44.95 US |
| 88800-0277 | D | Right Treadle Mounting Bracket | Fanny, Mira and Nilus (front hinge) | $34.95 CDN $31.50 US |
| 88800-0284 | E | Treadle Set Mounting Bolts - Metal Brackets (2 x Bolts/Nuts) |
Fanny, Mira and 4 shaft Nilus (front hinge) | $5.50 CDN $4.95 US |
| 88800-0224 | - | Treadle Set Mounting Bolts - Wood Brackets (2 x Bolts/Nuts) |
8 shaft Nilus (front hinge) and all Nilus II (front-hinge) | $6.50 CDN $5.95 US |
| 88800-0259 | F | Single Nilus II Wooden Treadle | Nilus II (4 shaft front hinge) | $49.95 CDN $44.95 US |
| 88800-0276 | G | Nilus II Treadle Rod (with 2 Lock Nuts) |
Nilus II (4 shaft front hinge) | $30.00 CDN $27.00 US |
| 88800-0279 | H | Single Nilus II Wooden Treadle Mounting Bracket with Mounting Bolt (3 needed) |
Nilus II (front hinge) | $29.95 CDN $26.95 US |
| 88800-0256 | J | Metal Treadle Washer | Fanny, Mira, Nilus (front hinge) and Nilus II (front hinge) |
$0.35 CDN $0.30 US |
| 88800-0271 | Full Fanny/Mira/Nilus Treadle Set | Fanny, Mira and Nilus (4 shaft) | $494.95 CDN $444.95 US |

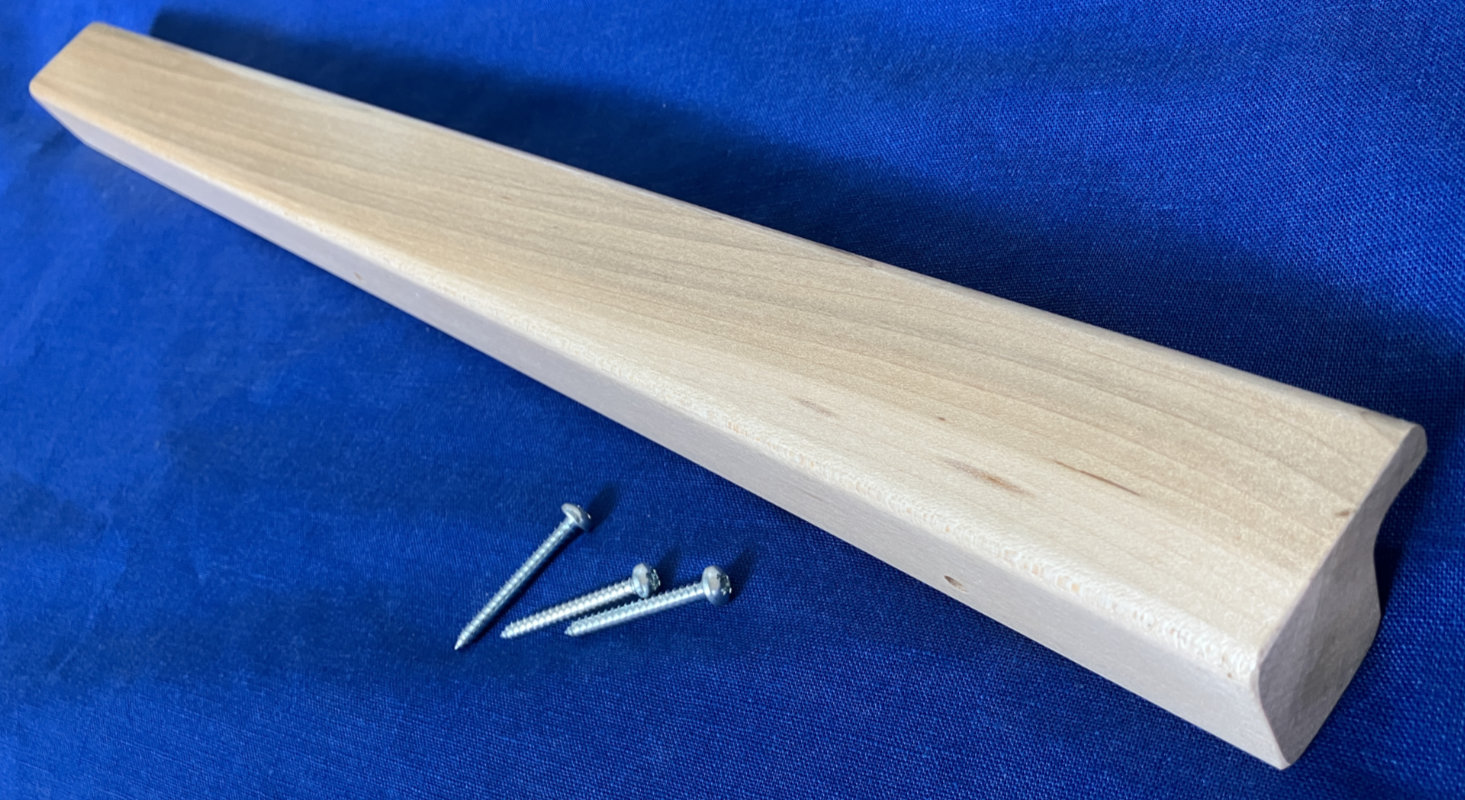

The Shuttle Race is a piece of shaped wood that wraps around the lower Beater Batten (ie the Batten Sley) to provide a flat surface that extends out toward the weaver and sits below the warp threads to support the boat shuttle as it travels through the shed. It is angled to provide a level surface when the beater is pushed towards the castle.
The Shuttle Race was originally designed for Jack looms where the warp threads on the base of the shed are not as tight as the upper threads and do not provide as much support for the Boat Shuttle on their own. Counterbalance and Countermarche looms that lower the warp threads as well as raising them generally do not include a Shuttle Race as the base of the shed is tensioned, but some weavers prefer Beaters with them so in later years Leclerc started including them as standard on most of their floor looms. While available for some of the Leclerc narrow table looms (ie. 15 3/4 and 9 1/2 inch models), they are often not needed as the Shuttle is just handed or pushed through the warp rather than thrown a long distance.
To add the Shuttle Race to a Leclerc loom, it is positioned on the Batten Sley and the holes in it are used as pilot holes to drill into the Batten before installing the screws that are included. Contact us for looms not listed below to determine if a Battten Sley can be added. In some cases we may need pictures to determine if the Shuttle Race will fit.
| ITEM # | DESCRIPTION | LOOM | PRICE (each) |
| 88800-0748 | 22" Shuttle Race | Meco and Medico | Contact Us |
| 88800-0749 | 22" Shuttle Race | Minerva | Contact Us |
| 88800-0248 | 24" Shuttle Race | Dorothy and Voyageur | $40 CDN $36 US |
| 88800-0804 | 27" Shuttle Race | Fanny, Mira, Nilus and Weavebird | $75 CDN $68 US |
| 88800-0805 | 36" Shuttle Race | Fanny, Mira, Nilart, Nilus, Nilus II and Weavebird |
$75 CDN $68 US |
| 88800-0806 | 36" Shuttle Race | Artisat | $75 CDN $68 US |
| 88800-0807 | 45" Shuttle Race | Colonial
, Fanny, Mira, Nilart, Nilus, Nilus II and Weavebird |
$105 CDN $95 US |
| 88800-0808 | 60" Shuttle Race | Colonial
, Fanny, Mira, Nilart, Nilus, Nilus II and Weavebird |
$120 CDN $108 US |
| 88800-0809 | 72" Shuttle Race | Fanny, Mira, Nilus II and Weavebird |
Contact Us |
These metal brace bars, or what Leclerc calls "hooks", are used on floor looms with folding back beams to position the beam and hold it in place.
One end of the hook permanently attaches to the back beam with a screw (not included). The rear folding beam is then positioned by putting one of the notches over a screw on the front part of the frame. The screw is then tightened to lock the beam in this position.
While the notches at each end of the hook are used for the full open (when weaving) and full closed (storage) positions, the additional notches in between are used to partially fold the loom if a Sectional beam is being used or the weaver doesn't want to completely fold the beam in.
In some looms like the Colonial and Colonial I a different notch is used depending upon whether the loom is configured as a Counterbalance or Jack loom.

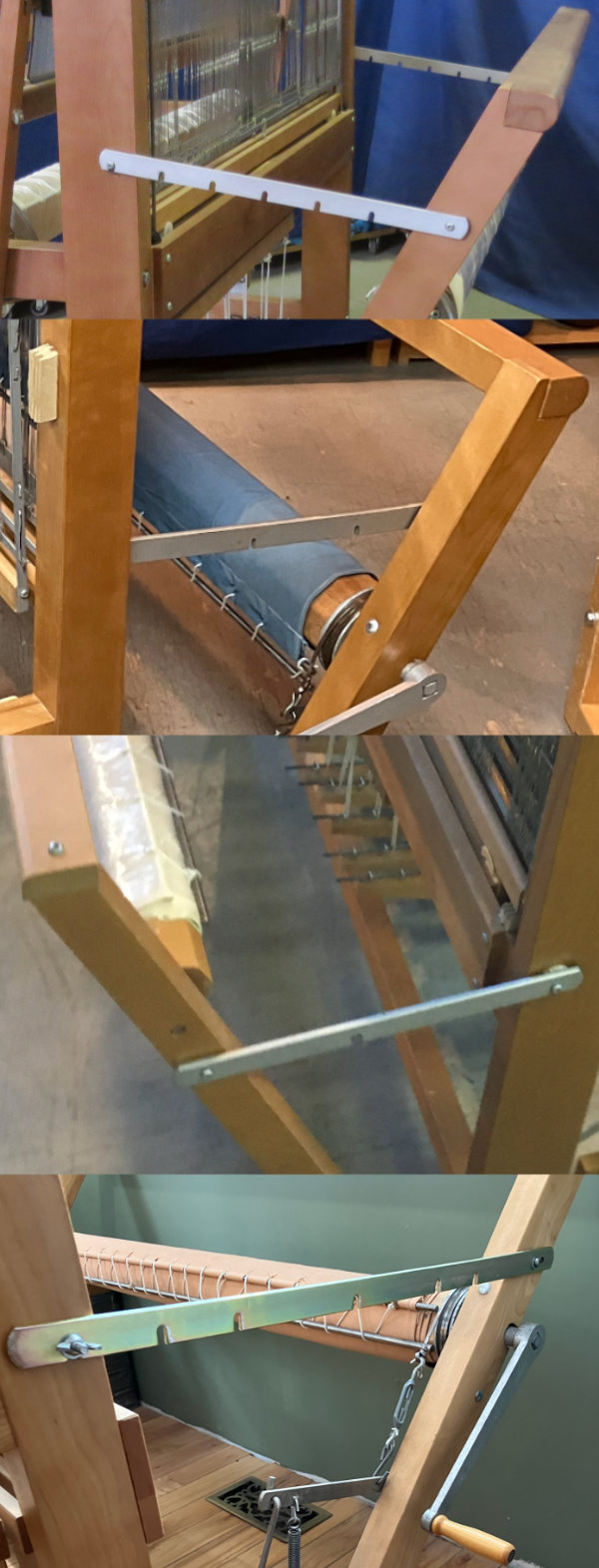

The pictures on the left show (from the top) the hooks on the Nilus 4 shaft, Fanny, Artisat 4 shaft, and Colonial I looms. Additional hooks are available for different models. Please contact us for more information.

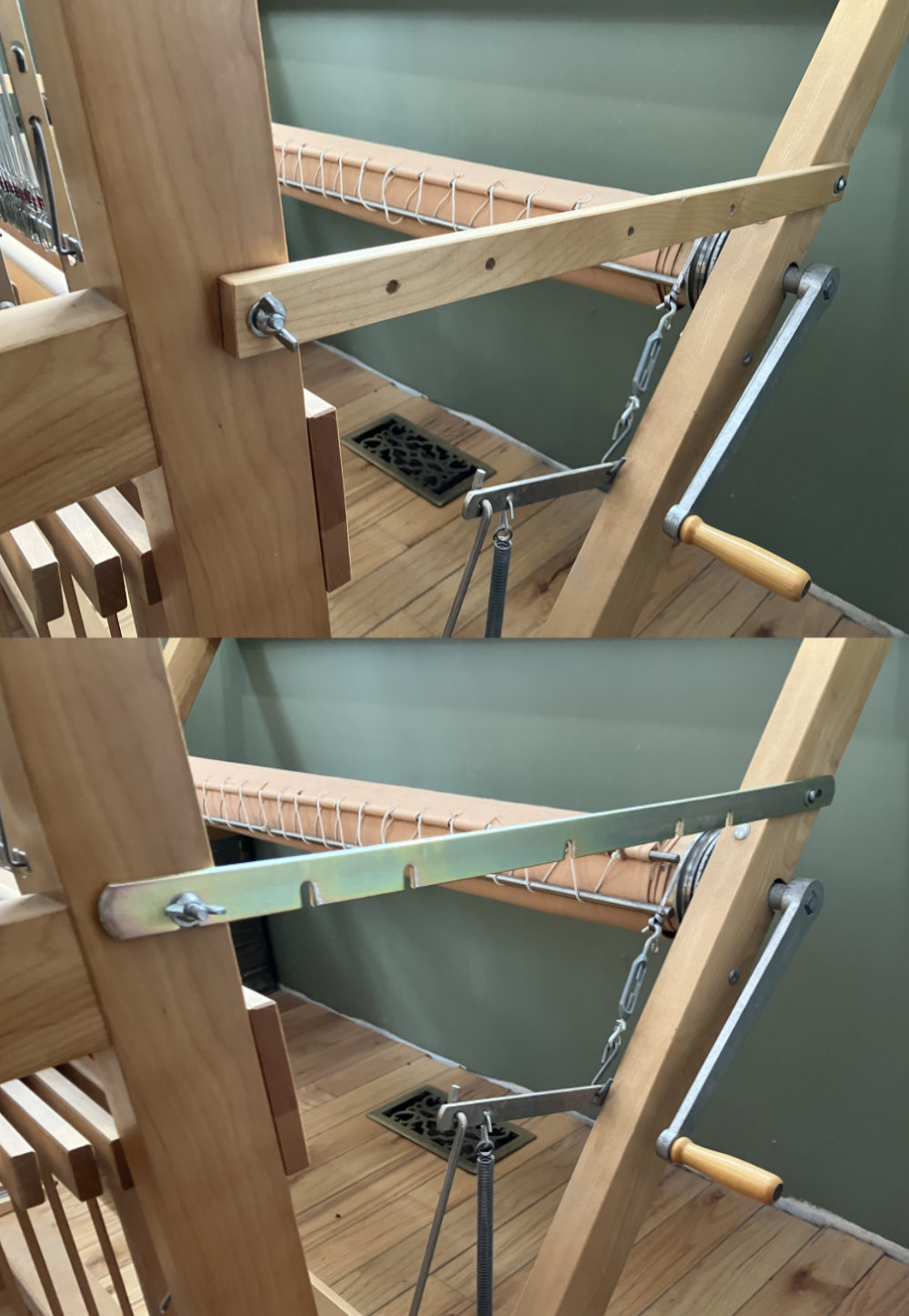

Note that the Colonial I loom came with a wooden hook that used holes instead of notches. These were awkward to open and close the loom and can be replaced wth the newer metal ones (upgrade pictured here).
Note: Parts may require the special square end screwdriver to remove the old and/or install the new part. Please ensure you have these tools before ordering to avoid installation problems.
| ITEM # | DESCRIPTION | PRICE (each) |
| 88800-0703 | Hook for 4 shaft Artisat (single hook) |
$37.95 CDN $33.95 US |
| 88800-0700 | Hook for Fanny or F-Type (single hook) |
$38.95 CDN $34.95 US |
| 88800-0701 | Hook for 4 shaft Nilus (single hook) |
$38.95 CDN $34.95 US |
| 88800-0702 | Hook for Colonial or Colonial I (single hook) |
$39.95 CDN $35.95 US |
This kit adds a second set of heddle support bracket to the Leclerc Bergere Rigid Heddle loom to allow two rigid heddles to be used while weaving. The brackets are mounted in front of the existing ones and a set of screws is provided alonge with mounting instructions. The kit includes a bracket for each side and instructions are shown in the Bergere section of our Manual page.
| ITEM # | DESCRIPTION | PRICE |
| 88800-0197 | Bergere 2nd Heddle Support Bracket Set | $44.00 CDN $40.00 US |
We only list a small selection of the parts available for Leclerc looms on this site but we can also provide a very large number of wood and metal parts that make up the frame and operating mechanism of most loom models. These genuine Leclerc quality components include things like lamms, frame beams, treadles, warp and cloth beams, counterbalance rollers, breast beams, beater swords and sleys, folding back beam supports and much, much more. (Click on the picture to the left to expand)
Contact us at nmanners@camillavalleyfarm.com and we will try to help. Note that it often helps for us to have clear pictures of your loom to identify the specific model and version and avoid providing the incorrect product. Our Leclerc Loom Identification Page will help you determine the specific model.
MORE PARTS (page 2)Note that these pages contain only a small selection of parts available for Leclerc weaving looms.
If you require a part not shown on this or any other page on our site, please contact us and we will help you locate what you require!
 |
NEED HELP? Contact us for help in answering questions about these products or for help recommending a loom matched to your weaving level and needs. See our Leclerc Loom Comparison Chart for more help in deciding which loom is right for you. |
|
How to Order: Orders may be placed using our secure Online Order Form (this form should open in another window). Click Here for more information on how to place an order as well as our terms and conditions. Payment/Currency: Payment can be made using VISA or Mastercard, Cheque or Money Order in US or Canadian funds. US credit card purchases are billed directly in US funds eliminating any foreign currency conversion charges by the credit card company. Product Directories If you are looking for other items on our website, try using our product directories to quickly find what you are looking for! Our products are grouped as follows: Weaving/Spinning Product Index Books, Magazines & Videos. |
Price/Shipping Quote? If you would like an exact quote for any items complete with shipping costs, please call or email us at nmanners@camillavalleyfarm.com with you location and we will provide this. Gift Certificate If you are looking for a gift for a Knitter or Weaver and can't figure out what they want, a Camilla Valley Farm Gift Certificate is an excellent way to ensure you get the perfect gift! We can also email gift certificates if you are running out of time! Latest News/Updates Keep up to date with what is new at Camilla Valley Farm by following us on Instagram! (Click on the logo below)  |
