Looking for a Serious Tapestry Weaving Loom?

The Leclerc Gobelin loom is a vertical oriented tapestry loom modeled after those used in the famous Gobelin School in Paris, France. The warp is stretched between a cloth beam at the bottom and a warp beam at the top, both of which are tensioned using a ratchet and pawl system. In addition to achieve the very high tensions required in tapestry weaving, a set of two heavy screws located on either side of the cloth beam (pictured below right) allow a very high tension to be placed on the warp. Once the warp is tightened using the ratchet, the screws can be used to move the cloth beam down increasing the tension even more. To avoid bending of the warp rods with the high tension, they are mounted within a recess carved into the warp and cloth beams.

Gobelin Loom

The vertical orientation of the warp threads allows the tapestry weaver to easily see the woven fabric up close or to move back and get a better perspective. The loom has a heavy duty frame with braces located in every corner for extra rigidity.

The Leclerc Gobelin loom is available in 36, 45, 60 and 100 inch weaving widths. While the loom is tall, it is designed to be very stable with the 60 inch version weighing over 160 pounds.


Two Gobelin Versions: Basic and Enhanced

Gobelin Loom

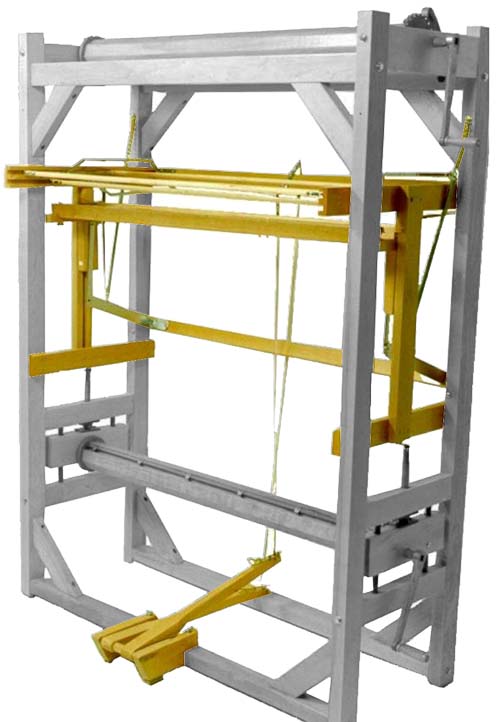

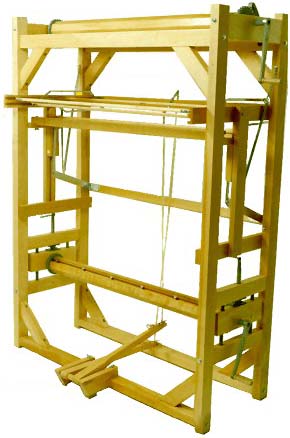

The basic version of the loom (shown above left) does not have shafts or a beater, but the warp can be manipulated using the weaver's fingers and string heddles. The same loom can also be ordered with a 2 shaft frame along with a beater mechanism to allow for conventional weaving of fabric and/or rugs as shown in the figure below right. The shafts move horizontally and are controlled by 2 foot treadles and the beater located below moves up and down. The standard Leclerc Reeds are used in the beater mechanism allowing for a wide range of warp thread thicknesses.

The enhanced version with the shafts and beater mechanism is available in 36, 45 and 60 inch widths only. The basic version of the Gobelin can be upgraded with a kit that adds shafts, treadles and the beater mechanism at a later date.


Specifications and Pricing:

The dimensions and ordering information for the different version of the Gobelin loom are listed below:

Loom 36" 45" 60" 100"
Loom
Version
Basic 5236-0000
$3,080 CDN
$2,834 US
5245-0000
$3,740 CDN
$3,441 US
5260-0000
$4,400 CDN
$4,048 US
5210-0000
$8,580 CDN
$7,894 US
Enhanced
with Shafts
& Beater
5236-9000
$4,697 CDN
$4,321 US
5245-9000
$5,280 CDN
$4,858 US
5260-9000
$7,040 CDN
$6,477 US
-
Width Weaving 36" (90 cm) 45" (115 cm) 60" (150 cm) 100" (254 cm)
Overall 47" (119 cm) 56" (142 cm) 71" (180 cm) 111" (282 cm)
Depth 20" (51 cm)
Height 71" (183 cm)
Net Weight 123 lbs (56 kg) 143 lbs (68 kg) 160 lbs (72 kg) 205 lbs (93 kg)
  • Email or call us at (519) 941-0736 for more information about this loom.
  • Shipping to destinations within Canada or the Continental United States is included for this loom.
  • Looms and accessories are guaranteed by Leclerc for one year covering defects in material and/or workmanship with parts replaced free of charge. Camilla Valley Farm extends this bringing it up to a Full 2 Year Warranty.
  • Looms are shipped partially disassembled for easier handling and to avoid damage during transit. Assembly is simple with both written and video instructions included as well as the required tools.
  • Looms are made of selected, well-seasoned, kiln dried Canadian hard maple or birch, except for shaft frames and a few parts that require lighter wood. Metal parts are aluminium dye cast, cast iron and steel protected by metal zinc plating.

Every Leclerc Gobelin Tapestry loom ordered from Camilla Valley Farm comes complete with the following extras to get you up and weaving immediately:

In addition the Enhanced Gobelin also includes:

Loom Options:

The basic Gobelin loom can be upgraded to the enhanced version with the addition of a special kit that includes the shaft, beater assembly and treadles. Leclerc also offers a choice of loom benches to fit all weavers and maximize their comfort while weaving. All of these options can be added to your Gobelin loom order or can be added to an existing loom at a later date.



LOOM OPTIONS ORDERING INFORMATION
36" 45" 60"
Basic to Enhanced
Loom Upgrade Kit
1050-9600
$1,955 CDN
$1,799 US
1050-9700
$2,185 CDN
$2,010 US
1050-9800
$2,760 CDN
$2,539 US
Raddle 6258-4000
$66.00 CDN
$61.00 US
6258-5000
$83.00 CDN
$76.00 US
6258-6000
$99.00 CDN
$91.00 US
Sectional Warp Beam Kit 1 Inch
Sections
6441-4000
$314 CDN
$288 US
6441-5000
$384 CDN
$349 US
6441-6000
$484 CDN
$445 US
2 Inch
Sections
6442-4000
$265 CDN
$244 US
6442-5000
$294 CDN
$270 US
6442-6000
$386 CDN
$355 US
Rocking Loom Bench
(Height Adjustable between 21 and 26 3/4")
6384-7000
$624.00 CDN
$574.00 US
Open Ended Loom Bench
(26" High with open ends for storage)
6384-4000
$788.00 CDN
$725.00 US

If you are looking for a smaller Tapestry Loom, the Penelope II Loom may be a better choice!


Documentation/Support:

Check out our Manual Section for downloadable assembly instructions for this and other Leclerc looms and weaving accessories. Information is also provided on upgrades and accessories. If you are not sure which Leclerc loom you own see our Leclerc Loom Guide to help identify the model.


Tapestry Weaving Reading Material

Besides Leclerc's I Weave, You Weave we have a number of other books on this subject which include: Contemporary Tapestry: Shuttle Craft Guild Monograph 12, Tapestry Loom Techniques: Exploration of the 2 Harness Loom, Tapestry Weaving, Tapestry Weaving: A Comprehensive Study Guide and the videos Tapestry Weaving - Level I and Level II.



Leclerc Loom Catalog CAN'T DECIDE? Contact us for help in answering questions about this loom, getting information
about others or for help recommending a loom matched to your weaving level and needs.

See our Leclerc Loom Comparison Chart for more help in deciding which loom is right for you.
