Leclerc Logo Colonial v2
Floor Loom

The Leclerc Colonial v2 adapts the traditional handloom design used by our ancestors updating it with a number of modern improvements while maintaining the classic look. Constructed with the finest Canadian Maple hardwood, it is finished with clear lacquer and varnish so that the beauty of the natural wood remains visible.

Colonial v2 Loom

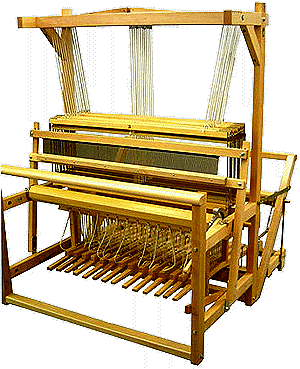

The Colonial v2 is available in both 45" and 60" weaving widths and can be ordered with 8 or 12 shafts. Kits are available to add more shafts allowing a weaver to start with basic 8 shaft weaves and then expand to 12 later as they become more proficient. The floating lams, overhead jacks and hanging harnesses produce a multi-shaft loom that is easy to treadle and quiet in operation. The loom's friction break and cloth advance rachet are sturdy enough for high tension warps and can be easily activated while the weaver is sitting. Note that a larger version of the picture to the left can be found by clicking on the image.

The Colonial series of looms were upgraded in 2008 with the improved Jack mechanism now found in the Colonial v2. These improvements include bushings for the jacks to ride on, rerouting of the cords to the sides instead of through the warp, a back-hinge treadle design that is lower and more comfortable for the weaver, and a new tie-up system to speed up the process and minimize the chance of cord mix-up. The result is a vastly improved loom design with a wider and cleaner shed.

Hanging Beater

The rear folding feet of the Colonial v2 give the loom a high degree of stability when weaving, but like the back beam, fold in to reduce its size when the loom is being moved or stored. This can occur even when the loom is warped. Non-sliding polyvinyl footpads at the base of the loom keep it from slipping on the floor.

Like all Leclerc looms, the Colonial v2 comes with two more foot treadles than the number of harnesses (10 on the 8 shaft and 14 on the 12 shaft). The standard "back-hinged" treadle design increases the weaver's leg leverage producing a wide, clean shed with less effort while ensuring even tension on all treadle cords with the treadles in either the rest or depressed position.

A set of pre-measured treadle cords are included which fasten to the treadles using the removable treadle hooks. Also, the breast and back beams on the loom can be easily removed to make warp threading a simpler task. Like all other Leclerc floor looms, the Colonial v2 is equipped with a regular warp beam to which a set of optional rake like pieces can be attached to convert it to a sectional warp beam. A Flying Shuttle Beater option is also available to speed up the weaving process and/or for those weavers with a limited reach.

The basic Colonial v2 comes with a underhand beater mechanism, but an optional kit will convert this to a Hanging Overhead Beater (see picture to right). In addition, Weighted Beater Options are available for Rug Weavers that increase the beater weight and enable the weaver to increase their beating force. Depending on the loom width and whether both or just one of the upper and lower weighted bars are added, the beater weight can be increased by 4 to 13 pounds. The weighted bars have internal weights, evenly distributed along the length of the beater bars and can be added and removed as needed, even when the loom is warped and in use.



Specifications and Pricing:

The dimensions and ordering information for the different version of the Colonial v2 loom are listed below:

Loom 45" 60"
Colonial v2
with
Back Hinge
Treadles
8 Shaft 1051-0082
$5,297 CDN
$4,950 US
1052-0122
$5,597 CDN
$5,230 US
12 Shaft 1051-0082b
$5,935 CDN
$5,547 US
1052-0122b
$6,330 CDN
$5,919 US
Heddles (#) 1,200 1,500
Width Weaving 45" (115 cm) 60" (150 cm)
Overall 57" (145 cm) 72" (113 cm)
Depth In Use 53 1/2" (135 cm)
Folded 33" (84 cm)
Height Loom 68" (173 cm)
Breast Beam 34 1/2" (79 cm)
Net Weight 185 lbs (84 kg) 219 lbs (99 kg)
  • Email or call us at (519) 941-0736 for more information about this loom.
  • Shipping to destinations within Canada or the Continental United States is included for this loom.
  • Looms and accessories are guaranteed by Leclerc for one year covering defects in material and/or workmanship with parts replaced free of charge. Camilla Valley Farm extends this bringing it up to a Full 2 Year Warranty.
  • Looms are shipped partially disassembled for easier handling and to avoid damage during transit. Assembly is simple with both written and video instructions included as well as the required tools.
  • Looms are made of selected, well-seasoned, kiln dried Canadian hard maple or birch, except for harness frames and a few parts that require lighter wood. Metal parts are aluminium dye cast, cast iron and steel protected by metal zinc plating.

Every Leclerc Colonial v2 loom ordered from Camilla Valley Farm comes complete with the following extras to get you up and weaving immediately:


Loom Options:

The basic Colonial v2 loom can be customized to fit the weavers application with a number of options including a Double Warp Beam to allow independent tensioning of two different yarn types, a Flying Shuttle Beater to speed up the weaving process and/or extend the weavers reach, a Hanging Overhead Beater, a Sectional Warp Beam to speed up the warping process and a Weighted Beater for rug weavers.

Leclerc also offers a choice of Loom Benches to fit all weavers and maximize their comfort while weaving. All of these options can be added to your Colonial v2 loom order or can be added to an existing loom at a later date.



LOOM OPTIONS ORDERING INFORMATION
45" 60"
Heddles
(Instead of Wire)
Texsolv
1051-9800T
$107 CDN
1052-9800T
$141 CDN
Inserted Eye
1051-9800I
$107 CDN
1052-9800I
$141 CDN
Double Warp Beam 6432-4000
$605 CDN
6430-6000
$701 CDN
Sectional Warp Beam Kit 1 Inch
Sections
6441-5000
$294 CDN
6441-6000
$375 CDN
2 Inch
Sections
6442-5000
$241 CDN
6442-6000
$316 CDN
Flying Shuttle Beater 6471-5000
$952 CDN
6471-6000
$1,017 CDN
Weighted Beater Bar Top 1560-3600
$129 CDN
1560-3600
$162 CDN
Bottom 1570-4500
$171 CDN
1570-6000
$212 CDN
Hanging Overhead Beater Option 6395-9000
$252 CDN
Adjustable Loom Bench
(Height can be set between 21 and 25")
6384-6000
$252 CDN
Rocking Loom Bench
(Height Adjustable between 21 and 26 3/4")
6384-7000
$423 CDN
Open Ended Loom Bench
(26" High with open ends for storage)
6384-4000
$487 CDN

Documentation/Support:

Check out our Manual Section for downloadable assembly instructions for this and other Leclerc looms and weaving accessories. Information is also provided on upgrades and accessories. If you are not sure which Leclerc loom you own see our Leclerc Loom Guide to help identify the model.


Leclerc Loom Catalog CAN'T DECIDE? Contact us for help in answering questions about this loom, getting information
about others or for help recommending a loom matched to your weaving level and needs.
